Collar Machine

Collar Machine

QL-1S522

Single carriage, single system is an integrated or insert type, this fully automatic Computerized Flat Knitting Machine series are equipped without comb, by using digital technology, it could implement the Stich Transfer, Jacquard, Needle narrowing and other weaving functions. lt can knit basic knitting (full needle single side) the weft knitted fabric like cable stitch. This applies to needle thread, spun silk, synthetic filament, wool, acrylic blending, yarn and other raw material, weaving sweaters, scarfs, hats and clothing accessories.
Product Specification
Brand new mountain board with totally independent patent property rights, controlled by step motor, the property is more stable.

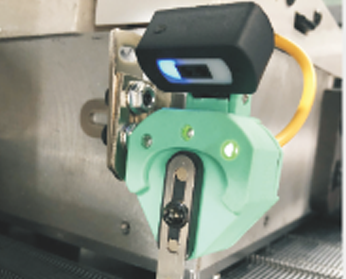

1. Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area. 2. A new innovative design of two-point induction guarantees immediately stop alarm when touching loating cloth or occurs any broken needles. 3. Super-sensitive automatic reset probe only works in current weaving width area, no false alarm beyond this. Freely operation, energy efficiency.

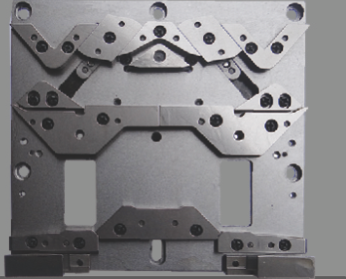

When knitting complex structure such as pattern stirring, hole hooking, this device can have full process precise control. It adapts well to wide torque range, responses quickly and locates accurately.
The movement of needle can achieve 2 inches range. When it required, the needle can move across anywhere according to pattern requirement. When knitting different type pattern or using different yarn, we could do fine turning to the velocity by program automatically so as to get a perfect quality.

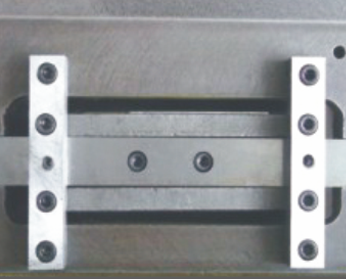

In addition to the independent intellectual property patents, the base has excellent perfor-mance like reasonable structure, stable transmission, no noise, easy to maintain and repair etc.
Main Parameter

Model

QL-1S522

Gauge

14G、16G、18G

Carriage

Single Carrier Single System

Knitting range

40"/52"/60"/80"

Size

52inches

Volume

 2300X730X1900mm

Net weight

Approximate 500kg

Voltage

220V/380V

Power

0.5kw

Specifications And Configurations Should Be Subjected To The Contract.



Yam Count: 2/16Nm
Yam Content: 25W75A
Yam Count: 2/16Nm
Yam Content: 25W75A
Yam Count: 2/16Nm
Yam Content: 25W75A
Yam Count: 2/16Nm
Yam Content: 25W75A
VIDEO

Qualification & Honor

158 certificates of honor,35 independent research and development certificates

In recent years,Qianglong and its leading product "Qiangsheng" brand multi-functional Computerized flat knitting machine have been successively rated as "national high tech enterprise", "China Quality Credit AAA", "Zhejiang science and technology small and medium-sized enterprise", "Jiaxing famous brand product"; "Jiaxing high tech research and Development Center", "Jiaxing enterprise technology center", "Jiaxing patent demonstration enterprise", "Jiaxing top ten industries"Design enterprise ". The company has been professional wholesale Single System Collar Knitting Machine manufacturers and Collar Knitting Machine suppliers.It has obtained 153 independent research and development patent certificates,123 utility models, 20 invention patents, and 10 appearances.
